Don't Trip! The Ultimate Guide to Circuit Breaker Replacement

Why Circuit Breaker Replacement Protects Your Home

Circuit breaker replacement is necessary when these safety devices can no longer protect your home from overloads and short circuits.

Key Signs You Need Circuit Breaker Replacement:

• Breaker trips frequently or won't reset
• Burning smell or hot-to-touch breaker
• Visible damage, corrosion, or discoloration
• Breaker is over 25 years old
• Buzzing sounds from the electrical panel

Essential Safety Steps:

1. Turn off the main breaker before starting any work
2. Use a voltage tester to confirm power is off
3. Wear protective gear like insulated gloves and safety glasses
4. Match the exact breaker type and amperage rating

Circuit breakers are your home's first line of defense against electrical fires, automatically cutting power during dangerous conditions. But like any mechanical device, they wear out, putting your family's safety at risk if they fail.

Most breakers last 25-40 years, but frequent outages or overloaded circuits shorten their lifespan. A faulty breaker might not trip, allowing dangerous currents to overheat wires and cause fires.

Replacing a breaker is a job for experienced DIYers due to the risk of deadly voltage. Even with the main breaker off, incoming power lines remain energized, so extreme caution is required.

When and Why to Replace a Circuit Breaker

Your circuit breaker is the guardian of your home's electrical system. Knowing when it's time for a circuit breaker replacement can save your home from serious electrical hazards. Most breakers last 25 to 40 years, but certain factors can shorten this lifespan.

Age is a key factor. If your breaker is over 25 years old, it may not respond as reliably during an electrical fault. Other warning signs include flickering lights, which can point to a struggling breaker, and frequent tripping. While an occasional trip is normal, constant tripping suggests a failing breaker or an overloaded circuit.

Alarming signs that require immediate attention include a burning smell, a breaker that's hot to the touch, or visible physical damage like burn marks or corrosion. These indicate dangerous conditions that could lead to a fire.

If your AC system is causing electrical issues, it might be related to the breaker. Our guide on Why AC Circuit Breaker Keeps Tripping can help you diagnose the problem.

Signs Your Breaker is Failing

Recognizing warning signs can prevent dangerous situations. Look out for these red flags:

• Frequent Tripping: If a breaker trips repeatedly, its internal mechanism may be worn out, or the circuit is overloaded.
• Buzzing Noises: Crackling or buzzing from the panel often indicates loose connections or dangerous internal arcing.
• Failure to Reset: If a breaker won't reset or trips immediately, its components have likely failed.
• Physical Evidence: Discoloration, burn marks, or corrosion on the breaker or panel are clear signs of heat or electrical damage.
• Heat: A breaker that feels warm or hot is generating excessive heat and needs attention.

Common Causes of a Tripped Breaker

Understanding why breakers trip helps determine if you need a replacement or just need to adjust your electricity usage.

• Appliance Overload: This is the most common cause. Running too many high-power devices on one circuit will cause the breaker to trip to prevent wires from overheating.
• Short Circuits: Damaged or frayed wiring can cause a hot wire to touch a neutral wire, creating a massive power surge that the breaker stops.
• Ground Faults: Similar to a short circuit, this occurs when a hot wire touches a ground wire or a grounded surface, creating a shock hazard.
• Faulty Appliances: An internal issue in an appliance can cause it to draw too much current, tripping the breaker. Unplug devices one by one to find the culprit.
• External Events: Lightning strikes and power surges can damage breaker components, requiring replacement.
• Failing Breaker: If you've ruled out other causes, the breaker itself may be worn out and need replacement.

Preparing for a Safe Replacement

Working with electricity requires caution. For a circuit breaker replacement, proper preparation is the key to safety. Skipping steps can be dangerous, so let's review what you need to do.

Safety always comes first. Before touching the electrical panel, shut off the main power using the large breaker at the top of the panel. Simply flipping the individual breaker is not enough protection.

Even with the main breaker off, the service lugs and incoming power lines remain dangerously live. These components carry lethal voltage, so never touch them.

After shutting off the main power, use a voltage tester to verify the circuit is dead. Test the terminals of the breaker you're replacing and adjacent breakers to be certain.

Protective gear is not optional. You need insulated gloves, safety glasses, and insulated tools. A rubber mat provides an extra layer of protection.

Finally, ensure you have the correct replacement breaker. It must match your panel's brand, amperage rating, and type. Using the wrong breaker can cause overheating, fires, or failure to trip.

Essential Tools for a Safe Circuit Breaker Replacement

Having the right tools for your circuit breaker replacement is about safety, not just convenience. Each tool protects you from electrical hazards.

• Insulated Screwdriver: Essential for safely working with terminal screws. Its insulation protects against shock.
• Voltage Tester/Multimeter: Critical for confirming the power is off before you touch any wires.
• Insulated Flashlight or Headlamp: Good lighting is important, as panels are often in dark areas.
• Safety Glasses and Insulated Gloves: Glasses protect your eyes from sparks, while gloves protect against shock. Ensure gloves are rated for the correct voltage.
• Wire Strippers and Insulated Pliers: Useful for preparing wires and removing stubborn breakers.
• New Circuit Breaker: Have the exact replacement ready before you start.

Choosing the Correct Replacement Breaker

Choosing the right replacement breaker is critical for a safe circuit breaker replacement. The wrong choice puts your home and family at risk.

• Brand Compatibility: The replacement must match your panel's brand (e.g., Square D for a Square D panel). Mismatched brands may not connect safely.
• Amperage Rating: This number (e.g., 15-amp, 20-amp) is on the breaker. Never install a higher amperage breaker unless the circuit's wiring has been professionally upgraded to handle the load.

This table compares the two main types of breakers:

• Specialized Breaker Types: If the original is an AFCI (Arc-Fault Circuit Interrupter) or GFCI (Ground-Fault Circuit Interrupter), the replacement must be the same type for continued protection.
• Physical Configuration: Check if your panel uses plug-in or bolt-on breakers. When in doubt, take the old breaker to a supply store for an exact match.

For a comprehensive selection of circuit breakers, you can browse options at Circuit Breakers to see what's available.

The Step-by-Step Guide to Circuit Breaker Replacement

This guide covers performing the circuit breaker replacement. Your preparation is key. Work slowly and stay focused, as rushing electrical work is dangerous. This process involves working inside your electrical panel with potentially lethal voltage. Even with the main breaker off, some parts remain energized. If you feel uncomfortable, call a professional electrician.

Step 1: Power Down and Verify

This step is critical for your safety.

First, turn off every branch circuit breaker in your panel. This reduces the electrical load and makes the process safer.

Next, find the main breaker (the largest switch, usually at the top) and flip it to the "OFF" position. This cuts power to all branch circuits, but the service lugs where power enters the panel are still live and dangerous.

Now, use your voltage tester. Test the bus bars and the terminals of the breaker you are replacing. Check adjacent breakers as well. Never assume the power is off—always verify with a tester.

Once you confirm there is no voltage, carefully unscrew and remove the panel cover.

Step 2: Remove the Old Breaker

With the power off and verified, you can remove the old breaker.

Disconnect the circuit wire (usually black or red) from the breaker by loosening the terminal screw with your insulated screwdriver. If it's a special breaker like an AFCI or GFCI, note how its white pigtail wire is connected before disconnecting it.

To remove the breaker, grip it firmly and pivot it outward, away from the bus bar. It should unclip and come free. Don't force it.

Inspect the bus bar for burn marks, corrosion, or damage. If you see any, stop and call a professional. This indicates a problem beyond a simple circuit breaker replacement.

Step 3: Install the New Breaker

Installing the new breaker is the reverse of removal, with a few key details.

Ensure the new breaker's switch is in the "OFF" position. Connect the circuit wire to the terminal screw and tighten it securely, but don't overtighten. A loose connection can create heat and arcing.

To install the breaker, hook its back end onto the mounting clip, then press the front firmly until it snaps onto the hot bus bar. It should click securely into place.

Tuck any excess wire neatly into the panel, then replace and secure the panel cover.

To restore power, first ensure all individual branch breakers are still off. Then, flip the main breaker to "ON." Finally, turn on each branch circuit breaker one by one, saving the new circuit for last. Test an outlet or light on that circuit to confirm it's working.

Congratulations on your successful circuit breaker replacement! Your home is now protected by a new, reliable breaker.

Advanced Breakers and When to Call a Professional

Sometimes a circuit breaker replacement is more complex, and it's best to call an expert. While replacing a standard breaker can be a DIY job, certain situations require professional expertise for safety.

Call a professional if you encounter:

• Complex Electrical Issues: If a new breaker keeps tripping or multiple circuits have problems, the issue could be a damaged bus bar (the metal strips breakers connect to). Damaged bus bars can cause dangerous arcing and must be handled by a licensed electrician.
• Old or Outdated Panels: Panels over 30 years old may use obsolete breakers or have brittle components, making them unsafe to work on. Forcing modern breakers into incompatible panels is a hazard.
• Permit Requirements: Many areas require permits for panel work. A professional electrician understands local electrical codes, ensuring the work is compliant, which is important for insurance and home resale value.

For persistent issues like those discussed in our article on AC Electrical Connection Problems in Roy, professional diagnosis is the safest and most cost-effective solution.

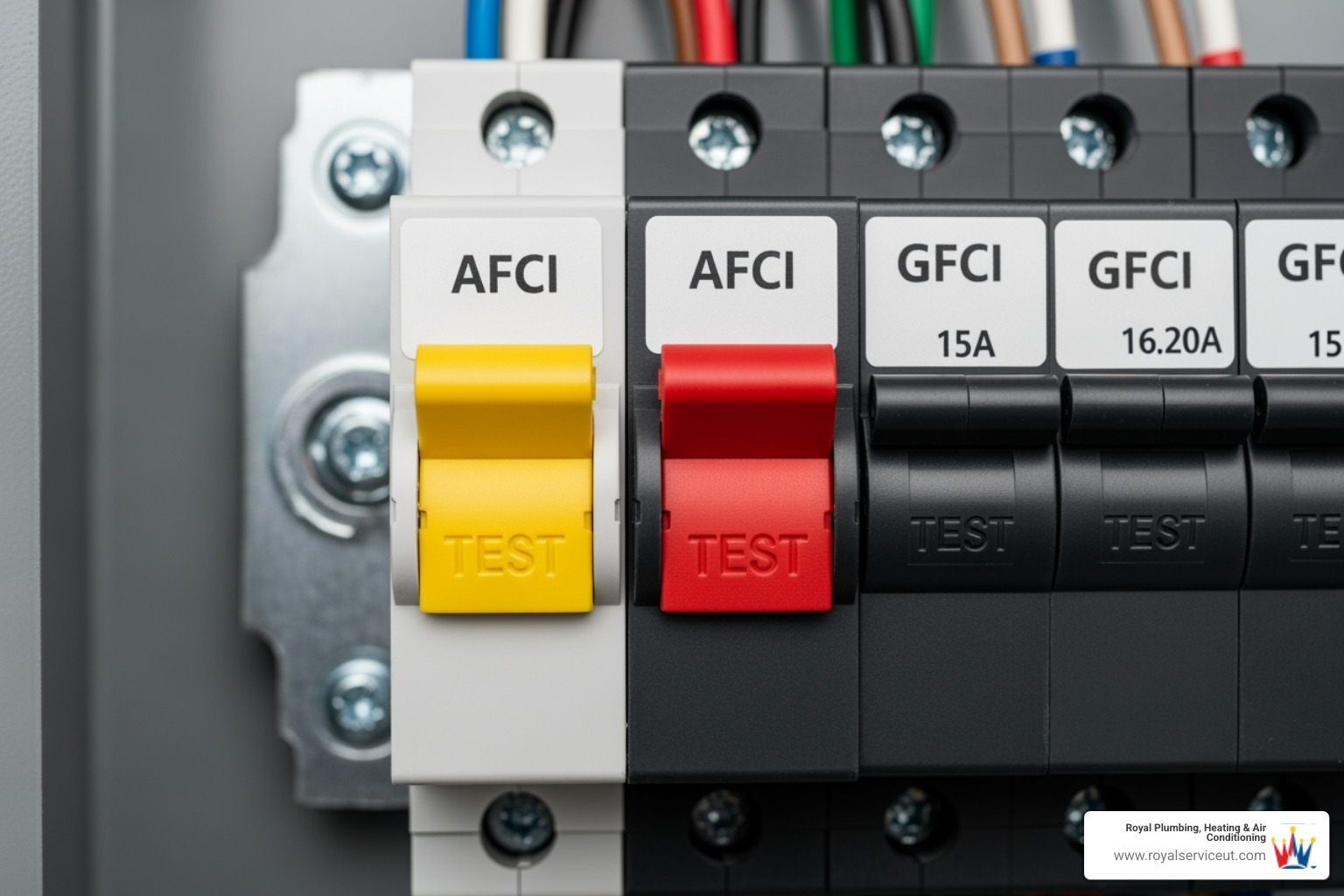

Understanding AFCI and GFCI Breakers

Modern homes use advanced breakers for improved safety.

• Arc-Fault Circuit Interrupter (AFCI): These breakers are fire prevention specialists. They detect subtle, dangerous arcing in damaged wiring that standard breakers miss—arcing that can generate enough heat to start a fire. AFCI protection is required by code in bedrooms and most living areas.
• Ground-Fault Circuit Interrupter (GFCI): These breakers prevent electric shock. They monitor current flow and cut power in milliseconds if electricity takes an unintended path, like through a person. GFCI protection is required in kitchens, bathrooms, garages, and outdoor areas where moisture increases shock risk.

Both AFCI and GFCI breakers have "Test" buttons. Test them monthly by pressing the button; the breaker should trip. If it doesn't, it needs immediate replacement.

Risks of Not Performing a Circuit Breaker Replacement

Delaying a necessary circuit breaker replacement is dangerous. The risks of a faulty breaker include:

• Fire Hazard: If a breaker fails to trip, wires can overheat, melt their insulation, and ignite nearby materials.
• Appliance Damage: Power surges and overloads from a faulty breaker can destroy valuable electronics and appliances.
• Electrical Shock: A malfunctioning GFCI breaker won't cut power during a ground fault, creating a serious risk of injury or death, especially in wet areas.
• Unreliable Power: A weak breaker can cause flickering lights and unexpected outages, which can also damage sensitive electronics over time.
• Code Violations: An outdated or faulty panel can lead to insurance claim denials and complications when selling your home.

Frequently Asked Questions about Circuit Breaker Replacement

Homeowners often have questions about circuit breaker replacement. Electrical work can be intimidating, so here are answers to the most common questions.

How long do circuit breakers last?

Circuit breakers are built to last, with a typical lifespan of 25 to 40 years under normal conditions.

However, this can be shortened by certain factors. Frequent tripping wears out the internal mechanisms. Environmental factors like high humidity or extreme temperatures in basements or attics can also cause components to degrade faster.

If your breaker is over 25 years old, it's a good idea to have it inspected, even if it seems to be working correctly.

What is the difference between a single-pole and a double-pole breaker?

The difference comes down to voltage and size.

• Single-pole breakers handle 120-volt circuits for things like lights and standard outlets. They protect one "hot" wire and take up one slot in your panel.
• Double-pole breakers are for 240-volt circuits that power large appliances like electric dryers, ranges, and central air conditioners. They protect two "hot" wires simultaneously and take up two adjacent slots in the panel.

Each type is designed for a specific job and cannot be interchanged.

Can I use a breaker with a higher amp rating?

The answer is a firm no. Never replace a circuit breaker with one that has a higher amp rating unless a qualified electrician has upgraded the circuit's wiring.

The breaker's amp rating is matched to the thickness (wire gauge) of the wires in that circuit. The breaker is designed to protect the wire.

If you install a higher-amperage breaker on wiring that isn't thick enough to handle the load, you remove that protection. The wire can overheat and cause a fire long before the new breaker trips. This is extremely dangerous.

Always use a replacement with the exact same amperage rating. If a circuit trips frequently, the solution is to reduce the electrical load on it or have a professional determine if you need a new circuit with upgraded wiring.

Conclusion

This guide has covered the essentials of circuit breaker replacement, from spotting warning signs like flickering lights to the step-by-step replacement process. You now know how to address issues with these critical safety devices.

Circuit breakers are your home's guardians against electrical fires and overloads. When they are over 25 years old, trip frequently, or feel hot to the touch, it's time to act.

While the replacement process—shutting off power, using a voltage tester, and swapping the breaker—can be a DIY task for those with experience, it's crucial to know your limits. Safety must always be the top priority.

Complex electrical issues, problems with AFCI/GFCI breakers, damaged bus bars, or outdated panels are jobs for a professional. The risks of fire, appliance damage, and shock are too high to take chances. Remember to always match the breaker's amperage rating and never use a higher one on existing wiring.
